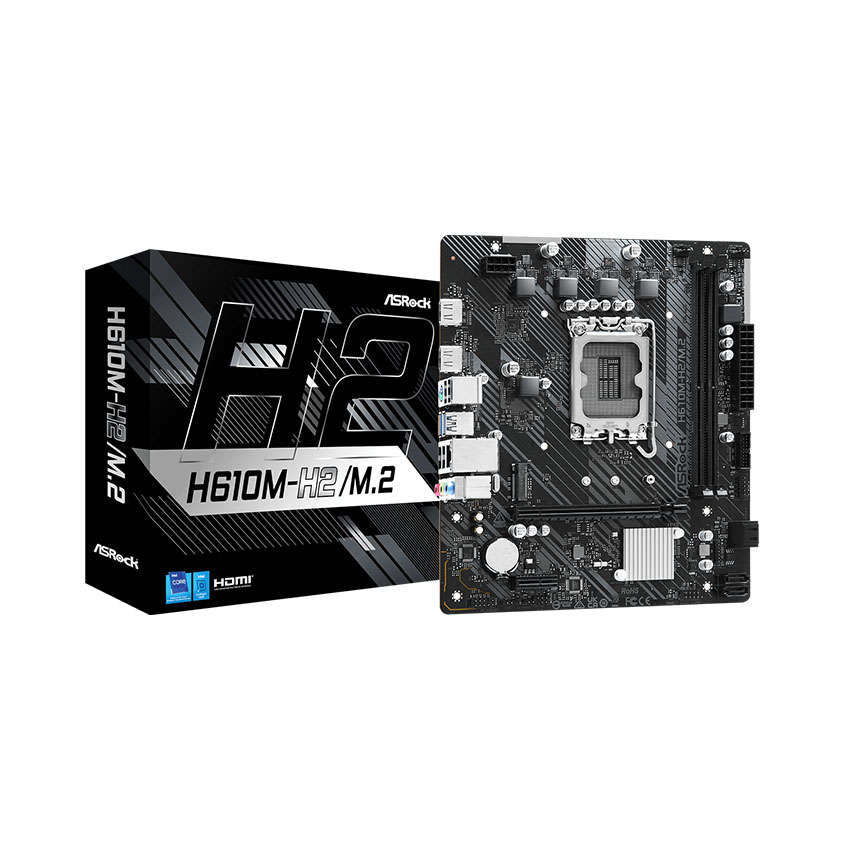

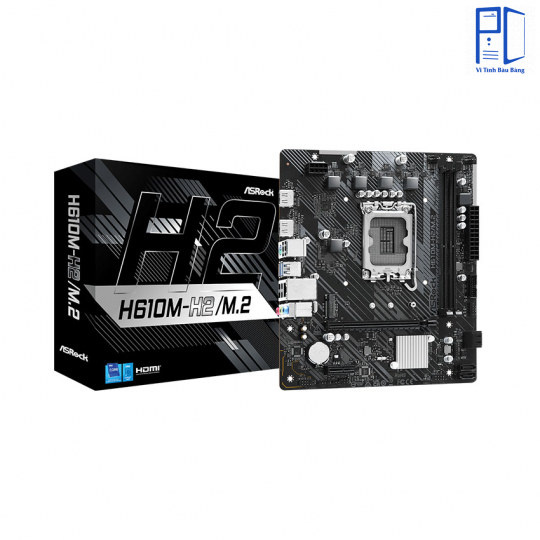

Mainboard ASROCK H610M-HVS/M.2 R2.0
-
140
-
1.750.000đ
- Mainboard ASROCK H610M-H2/M.2 DDR4
- Unique Feature
- Rock-Solid Durability
- - 3+1+1 Power Phase
- EZ Update
- - ASRock Auto Driver Installer
- CPU
- - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- - Supports Intel® Hybrid Technology
- - Supports Intel® Turbo Boost Max 3.0 Technology
- Chipset
- - Intel® H610
- Memory
- - Dual Channel DDR4 Memory Technology
- - 2 x DDR4 DIMM Slots
- - Supports DDR4 non-ECC, un-buffered memory up to 3200
- - Supports ECC UDIMM memory modules (operate in non-ECC mode)
- - Max. capacity of system memory: 64GB
- - Supports Intel® Extreme Memory Profile (XMP) 2.0
- BIOS
- - 128Mb AMI UEFI Legal BIOS with GUI support
- Graphics
- - Intel® Xe Graphics Architecture (Gen 12)
- - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz
- * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Audio
- - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- LAN
- - Gigabit LAN 10/100/1000 Mb/s
- - Realtek 8111H
- Slots
- CPU:
- - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
- Chipset:
- - 1 x PCIe 3.0 x1 Slot (PCIE2)*
- * Supports NVMe SSD as boot disks
- Storage
- Chipset:
- - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
- - 4 x SATA3 6.0 Gb/s Connectors
- * Supports NVMe SSD as boot disks
- USB
- - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- - 6 x USB 2.0 (4 Rear, 2 Front)
- * All USB ports support ESD Protection
- Connector
- - 1 x SPI TPM Header
- - 1 x Chassis Intrusion and Speaker Header
- - 1 x CPU Fan Connector (4-pin)*
- - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- - 1 x 24 pin ATX Power Connector
- - 1 x 8 pin 12V Power Connector
- - 1 x Front Panel Audio Connector
- - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- * CPU_FAN1 supports the fan power up to 1A (12W).
- ** CHA_FAN1/WP supports the fan power up to 2A (24W).
- CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
- Rear Panel I/O
- - 1 x PS/2 Mouse/Keyboard Port
- - 2 x HDMI Ports
- - 2 x USB 3.2 Gen1 Type-A Ports
- - 4 x USB 2.0 Ports
- - 1 x RJ-45 LAN Port
- - HD Audio Jacks: Line in / Front Speaker / Microphone
- UEFI and Software
- Software
- - ASRock Motherboard Utility (A-Tuning)
- - ASRock XFast LAN
- UEFI
- - ASRock EZ Mode
- - ASRock Full HD UEFI
- - ASRock My Favorites in UEFI
- - ASRock Auto Driver Installer
- - ASRock Instant Flash
- *These utilities can be downloaded from ASRock Live Update & APP Shop.
- Accessories
- - 1 x I/O Shield
- - 2 x SATA Data Cables
- - 1 x Screw for M.2 Socket
- Form Factor
- - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
- OS
- - Microsoft Windows® 10 64-bit / 11 64-bit
- Certifications
- - FCC, CE
- - ErP/EuP ready (ErP/EuP ready power supply is required)
